Architecture in practice
Choose a system to explore
Six portable examples. Start a separate draft, make an edit and follow a real connection.

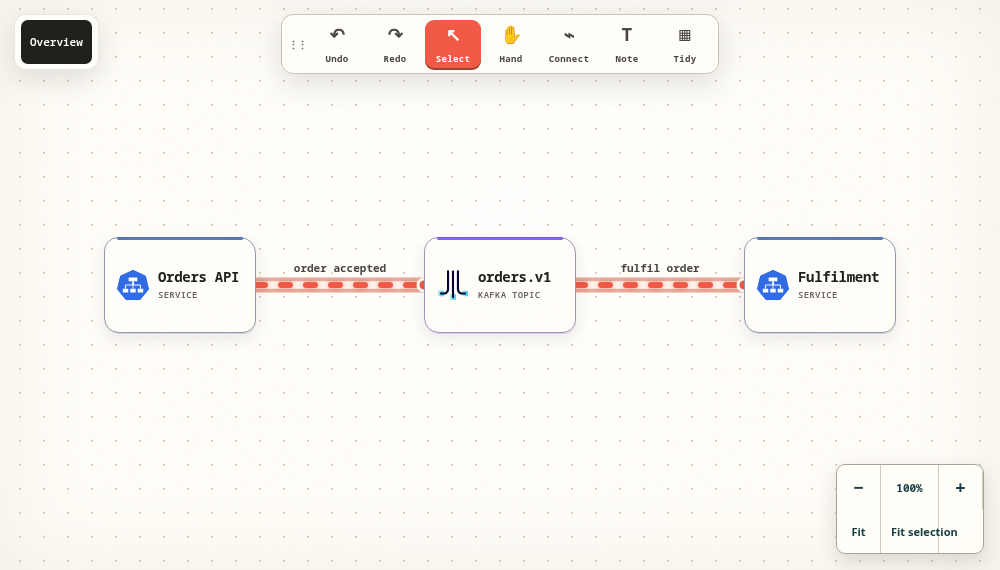

Event-driven commerce
Trace an order from the API to a topic and fulfilment worker.
Start from template

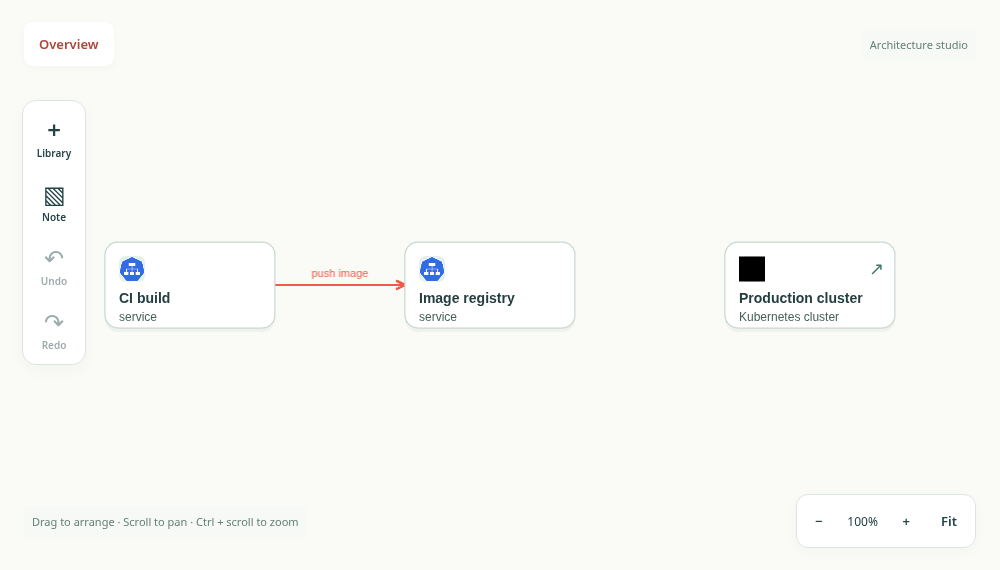

Kubernetes delivery
Open the cluster and distinguish deployment from runtime traffic.
Start from template

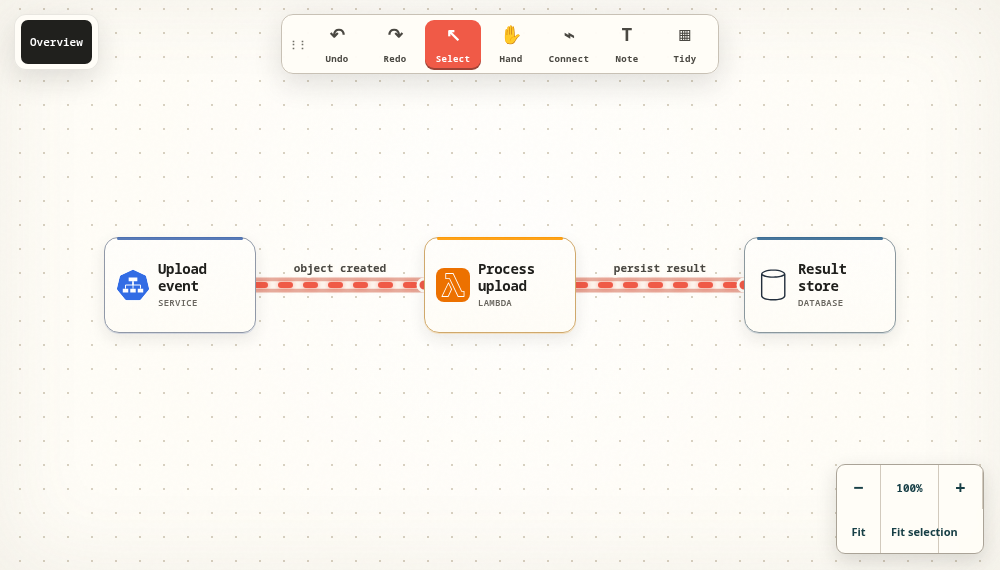

Serverless processing
Separate the event source, stateless processor and durable output.
Start from template

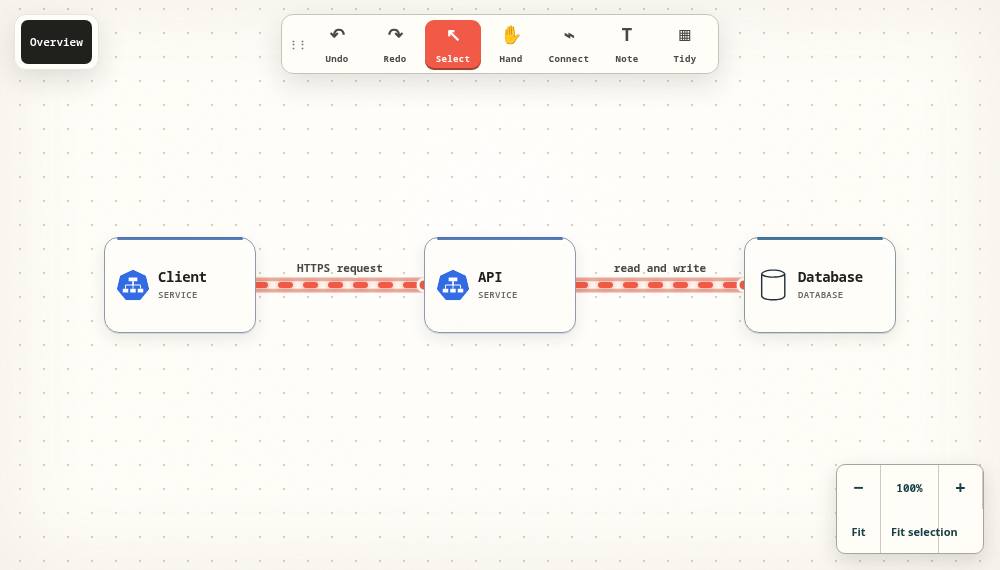

API and database
Rename one service and trace a request to its persistent store.
Start from template

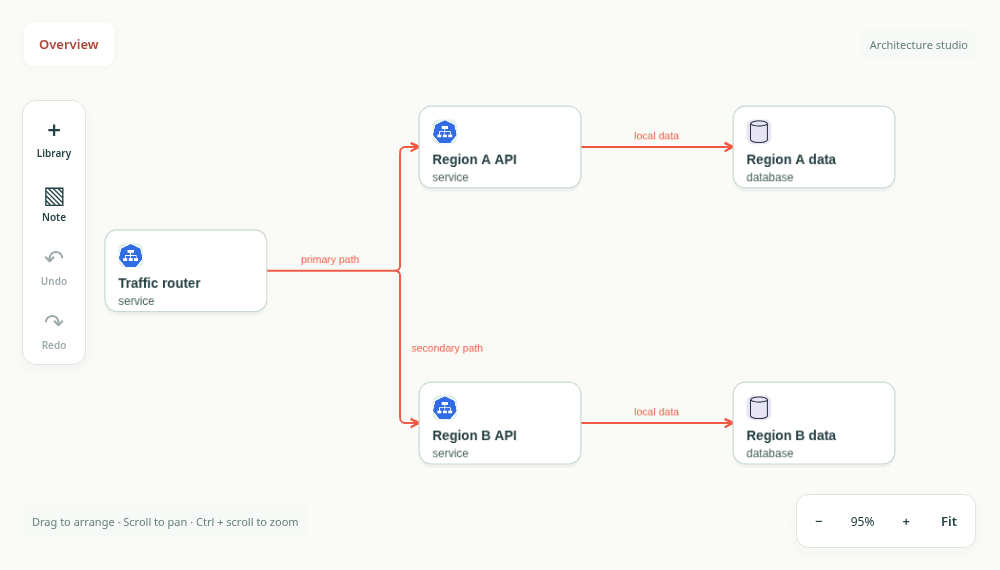

Multi-region service
Compare two regional paths. This is a design example, not a Flowboard residency promise.
Start from template

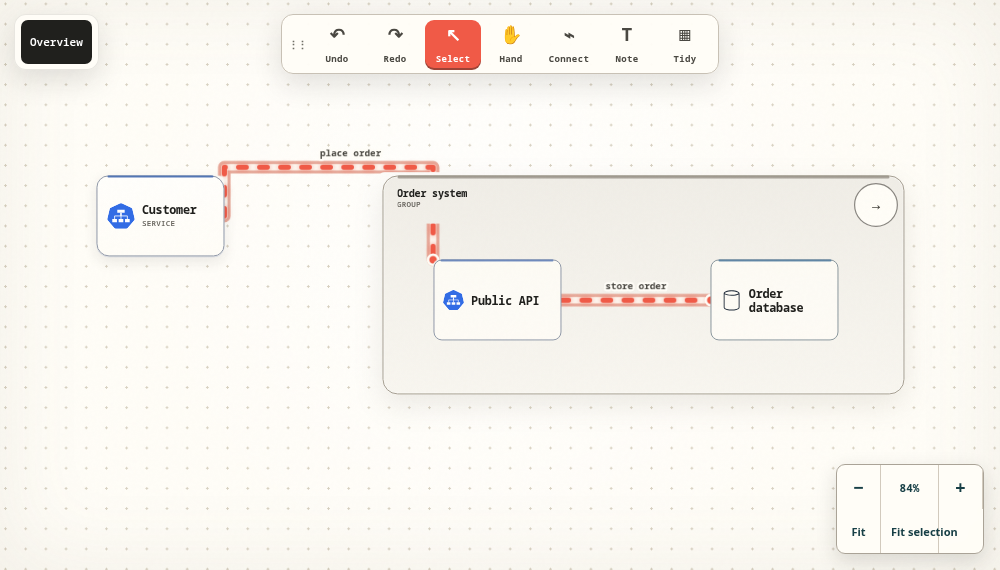

Context and container views
Open a system boundary to reveal its API and database.
Start from template
